Horizon
The Bandweaver Horizon technology is a sophisticated Distributed Acoustic Sensing (DAS) technology which forms a key part of a perimeter monitoring and intrusion detection solution.
- High performance intrusion detection solution
- Simple installation
- Low cost of ownership
- Solution immune to RFI
- Event classification algorithms
- High detection rate – low nuisance alarm level
- 100km range per system
- Location to within 5m
- No distributed electronics along intrusion path
- 2 year standard warranty
Bandweaver’s Horizon solution provides detection both above and below ground from a single unit or even with a single fiber optic cable. This can be applied to covert buried, fence mounted and wall mounted perimeters.
The Maxview Horizon platform is a very versatile platform which provides information at all points along your asset. This covers both buried assets (pipelines, cables) and assets above ground (overhead power lines, fences, perimeters).
Bandweaver’s extensive library of event classification engines assures that a wide variety of events can be detected before any potential threat or damage occurs. With intelligent zone configuration you are able to configure and customize according to your needs.
| Main Processor | AIMB-701G2-00A1E CPU 96MPI7-3.4-8M11T1 |
| Processor | Intel i7 3.4 GHz |
| BIOS | AMI 64 Mbit SPI |
| Memory: RAM | 8GB |
| Memory: | 2 TB (5 & 10 km ) & 8 TB (20 & 50 km models) – Solid State Drive (enquire for additional memory requirements) |
| GRAPHICS | |
| Graphics Card | GeForce GTX1050 2G 128BIT GDDR5 PCI-E3.0 |
| INTERFACES | |
| USB | Front: 2 , Rear: 4 |
| Serial | Rear: 1 |
| PS/2 | Front: 1 (keyboard) / Rear: 2 (1 x keyboard and 1 x mouse) |
| HDMI / DVI / Displayport | Yes |
| VGA | No |
| Ethernet | 2x connection to Horizon DU, 1x user connection (network switch / SCADA etc.) 1x reserved (remote login / maintenance) |
| ELECTRICAL | |
| Input Voltage | AC 100 ~ 240 V |
| Power Consumption | 300W |
| Power Supply Safety | UL / TUV / CB / CCC |
| Power Supply MTBF | 100,000 hours @ 25 °C |
| PHYSICAL | |
| Dimensions (W * H * D) | 482 x 177 x 450 mm (19″ standard rack, 4U height) |
| Weight | 13.75 kg (19kg Shipping weight) |
| Shipping dimensions | 600 x 330 x 565 mm |
| IP Rating | 4 |
| System Fan details | 1 (12 cm / 77 CFM) |
| ENVIRONMENTAL | |
| Temperature rating | Operating: 0° to +40 °C Storgage -20 ° to 60°C |
| Humidity | Operating 10 ~ 85% @ 40°C, non-condensing / Storage 10 ~ 95% @ 40°C, non-condensing |
| Storage Temperature | -20° to +60°C |
| Shock | Operating: 1Grms / Non-Operating: 2 G |
| Vibration (5 ~ 500 Hz) | Operating: 10 G (with 11 ms duration, half sine wave) / Non-Operating: 30 G |
| OPERATING SYSTEM AND SOFTWARE | |
| Operating System | Windows 10 English Professional 64 bit |
| Software | SSOS |
| Product | Horizon 5 | Horizon 10 | Horizon 20 | Horizon 50 |
| Range per channel | 5km | 10km | 20km | 50km |
| Number of channels | 1 or 2 channels possible | |||
| Ordering Part Numbers | DAS-HZ-02-05-1CH | DAS-HZ-02-10-1CH | DAS-HZ-02-20-1CH | DAS-HZ-02-50-1CH |
| DAS-HZ-02-05-2CH | DAS-HZ-02-10-2CH | DAS-HZ-02-20-2CH | DAS-HZ-02-50-2CH | |
| DATA ACQUISITION | ||||
| Acquisition Frequency | 2kHz default ‒ 1kHz / 2kHz / 4kHz available as standard.
10kHz / 20kHz by special request (for select Horizon Units) |
|||
| Event accuracy resolution*** | 1-5m | 1-10m | 2-10 m | 5m – 10m |
| OPTICAL | ||||
| Laser Wavelength | 1550 nm | |||
| Optical Budget | 12 dB @ 1550 nm | |||
| Connector Type | FC / APC | |||
| Cable type | G.652 / G.654 | |||
| Laser Safety Classification | Class 1M | |||
| ELECTRICAL AND HARDWARE INTERFACES | ||||
| Supply Voltage | 220V AC (110V-240V AC), 50/60 Hz | |||
| Power Consumption | 25W (typical), < 50W | |||
| Alert & Communications Protocols | MODBUS (MaxView), Email (MaxView), IEC 60870-5-104 (MaxView | |||
| Camera Integration | Yes – camera feed integration into SSOS – ONVIF as standard – enquire for other | |||
| PSIM / SCADA Integration | Ethernet TCP/IP – Software adapter module | |||
| PHYSICAL | ||||
| Rack height | 3U | |||
| Dimensions (W * H * D) | 487 × 405 x 131 mm | |||
| Net Weight | 14 kg | |||
| IP Rating | IP40 | |||
| ENVIRONMENTAL | ||||
| Operating Temperature | 0° to +45°C | |||
| Operating Humidity | 0 to 95% RH, Non-condensing | |||
| Storage Temperature | -45°C-80℃ | |||
| Storage Humidity | 0-90% | |||
| SAFETY AND COMPLIANCE | ||||
| Laser Safety | IEC60825-1 | |||
| CE – EMC | EMC 2014/30/EU ‒ EN 61000-6-3:2007+A1:2011, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61000-6-1:2007 | |||
| CE – LVD | LVD 2014/35/EU ‒ IEC 61010-1:2010, EN 61010-1:2010 | |||
| CE – RoHS | Yes | |||
| FDA | FDA Ascension number 1820671-000 | |||
| FCC | 47CFR Part 15:2017, ANSI C63.4:2014 | |||
System Integration
The Maxview Advantage

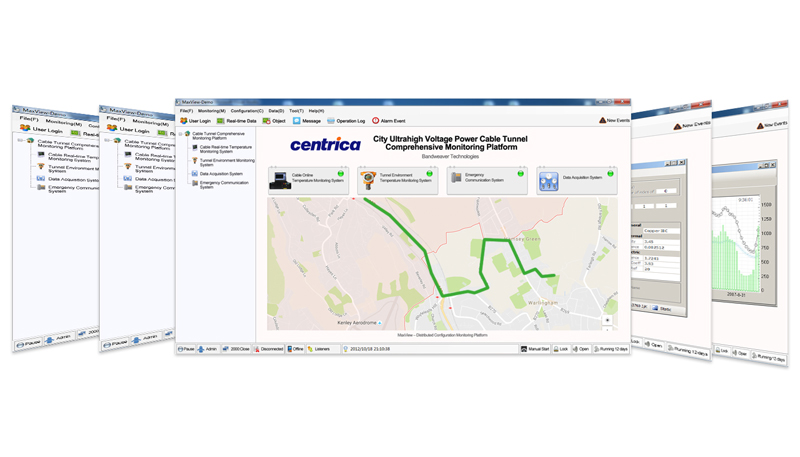

Bandweaver’s Maxview SCADA integration software is a proven solution to provide advanced visualization and integration with existing security technologies deployed on site. Maxview provides a system mapping function, along with real time event management.
The Horizon IPC units also provide alarm management capabilities by the use of event database management and seamless integration with other security technologies including DCS, CCTV and access control, to provide an effective integrated security solution.
